Automatic Sock Knitting Machine
LEEFU Automatic Sock Knitting Machine can knit extra long, long, medium, and short socks and pantyhose with one cylinder by a computer with CUP 800M. It can produce socks of various structures such as plain stitch, plating, tuck, jacquard, terry, and horizontal stripes. The main knitting parts are latch needles, sinkers, foot pieces, and jacquard pieces. The butts of latch needles can be divided into long, medium and short.
- full computerized control system
- Double pickers decrease the extent of making toe and heel, increasing the knitting speed and 3D socks
- Automatic lubrication device
- Automatic oil pump system
- Automatic error self-check and machine stop automatically when problem and error information showing on LCD interface.
Automatic Sock Knitting Machine Function

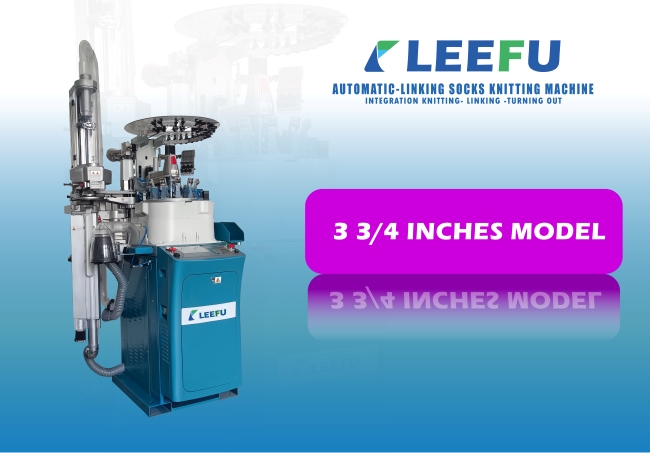

LEEFU Automatic Sock Knitting Machine belongs to one small needle cylinder with 3 1/2 inches (3.5inch), 3 3/4 inches (3.75inch), and 4 inches diameter. The knitting process of a pair of socks begins with the sock opening, which is the widest part of the sock and is usually made of a ribbed pattern for maximum extensibility. In order to prevent the socks from curling and increase their fastness, they are often knitted into double layers. In order to make the sock part conform to the shape of the foot, it is necessary to transfer the stitches twice to reduce the width. The heel, sole, and toe of the sock are subject to more friction, so more yarn is needed to increase wear resistance and elasticity. After the knitting is completed, the socks are moved to the fully automatic linking device through the sock transfer device, and then automatically completed with the suture line. Finally, the negative air pressure device completes the flipping of the socks and transfers them directly to the sock storage basket.
Technical Data
- Automatic Sock Knitting Machine Parameters
| SPEC | PARAMETER |
| CYLINDER DIAMETER | 4” ; 3 3/4” ; 3 1/2” |
| NEEDLE(PCS) | 108-200 |
| MAX SPEED(RPM) | Free Terry 250/ Selected Terry 300/ Plain 350 |
| COLOR YARN | 5groups*3 / 6groups*3 |
| NEEDLE SELECTOR | 6groups color yarn use 9pcs electronic needle selector; |
| 5groups color yarn use 8pcs electronic needle selector; | |
| MAIN YARN FEEDING | 8pcs or 9pcs Pneumatic shuttles with two positions |
| SEVER MOTOR(KW) | 1.5 |
| FAN MOTOR(KW) | 1.5-2.0 |
| CONTROLLER(KW) | 1 |
| VOLTAGE(V) | 220/380 |
| NW/GW(KG) | 350/400 |
| PACKAGE DIMENSION(CM) | 120*110*190 |
| BOUNDARY DIMENSION(CM) | 110*110*230 |
Automatic Sock Knitting Machine Equipment

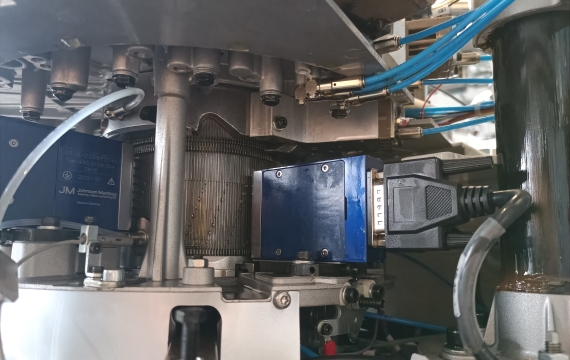

Electronic Actuator
LEEFU automatic sock knitting machine uses Siemens brand piezoelectric actuators needle selector. For example, the LF616(6 colors group jacquard) model has 9pcs 8 sections electric actuators, and the LF615(5 colors group jacquard) model has 8pcs 8 sections electric actuators.
Double Elastic Yarn Feeders
The elastic yarn feeder device is designed to provide the positive feeding of elastic yarn. It is mainly suitable for automatic sock knitting machines. The device can feed extremely low yarn tension (down to 0.1 Centinewton ), which means that ultra-fine gauge elastic yarn can be accurately fed into fine socks.

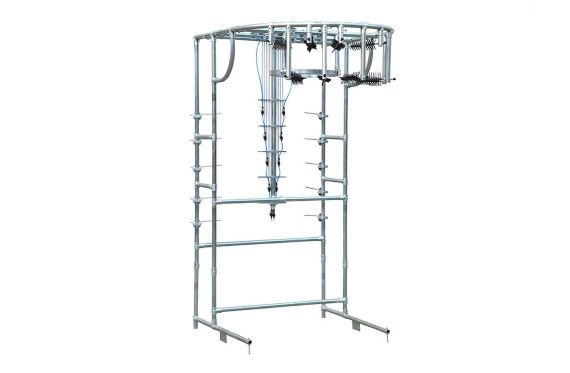

Multifunctional Yarn Creel
LEEFU automatic sock knitting machine’s multi-functional independent creel is used to avoid high-speed knitting of the sock knitting machine, causing the parts of the machine to swing, thereby affecting the yarn transportation, avoiding defective socks, and improving the production efficiency of socks.
Catalogue Automatic Sock Knitting Machine
The multifunctional yarn creel of LEEFU automatic sock knitting machine is optional equipment, and we suggest the customer buy from the local market and save the container weight and space.
LEEFU automatic sock knitting machine’s standard electric power is single phase and 380V, and we can supply a customized power supply of 220V to meet different customer requirements in the world.
LEEFU automatic sock knitting machine free supply one toolbox per five sets of machines, and the toolbox contain basic machine maintenance tools.
The sock design software has an automatic programming function to automatically generate lower computer control data for sock machine series products. Its functions include pattern design, chain editing, machine parameter setting, data transmission, etc.
