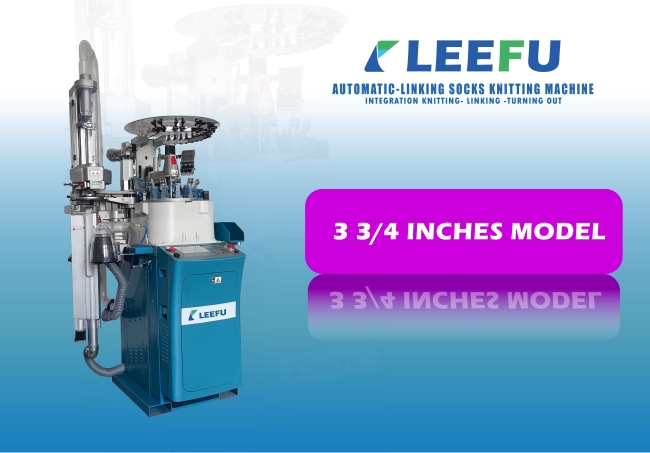

LEEFU AUTOMATIC LINKING SOCK KNITTING MACHINE
LEEFU company can produce automatic linking sock knitting machines 200 sets per month, which uses a single cylinder that can be 3 1/2 inches, 3 3/4 inches, and 4 inches. LEEFU sock knitting machine equips with a stable stitch-by-stitch automatic toe-linking device.
- Knitting, transferring and turning out is integrated within one sock knitting machine
- 6 or 5 colors yarn groups
- Knit the plain, selected terry, and free terry
- Reduce the sock factory and sock manufacturers’ worker’s qty
- No need the winding machine
What is LEEFU Automatic Linking Sock Kniting Machine

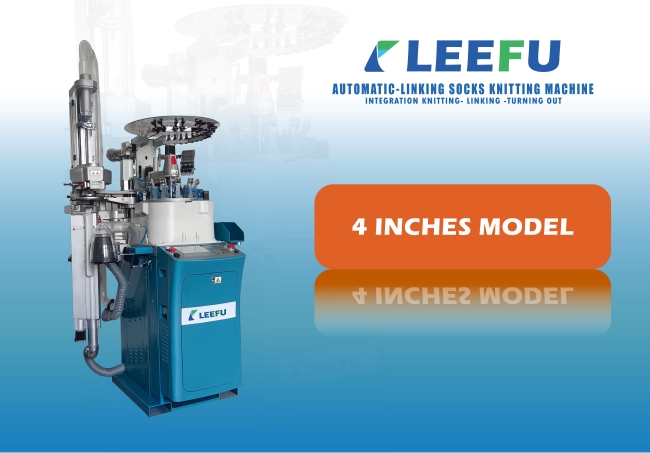

LEEFU sock knitting machine with 3 1/2inches is used for children’s socks, such as kid socks with grips, best socks for kids, children’s happy socks, toddler socks, kids cotton socks, kids crew socks, long socks for kids, and Nike socks for kids. 3 3/4 inches sock machine is used for all kinds of socks, such as socks Nike socks for running, socks Bombas, socks men’s, socks with grip, socks compression, socks for pilates, socks stance, socks custom, socks ankle compression, Bombas socks, socks Nike, socks darn tough, socks stance, socks grip, socks happy, socks heated socks, balega socks. 4 inches sock machine is used for men’s athletic socks, men’s sports ankle socks, best men’s socks on Amazon, stance socks, compression socks, Nike socks men, Smartwool socks, white Nike socks, men’s compression socks, Bombas socks, mens golf socks.
LEEFU Automatic Linking Sock Knitting Machine Features
LEEFU Automatic Linking Sock Knitting Machines uses a transfer mechanism from a knitting machine to a sock linking machine is disclosed which enables the labor content of sock production to be reduced. The sock is mechanically removed from the knitting machine and supported upon a transfer form at its welt end. Then the sock is stretched and driven fully onto the linking device. Thereafter a sock boarding form is inserted into the foot end of the sock to draw the sock there onto while simultaneously turning it.
LEEFU sock knitting machine uses high-quality stitch-by-stitch automatic toe-linking technology which increases the flatness of socks and makes the sock more comfortable and wear-resistant.

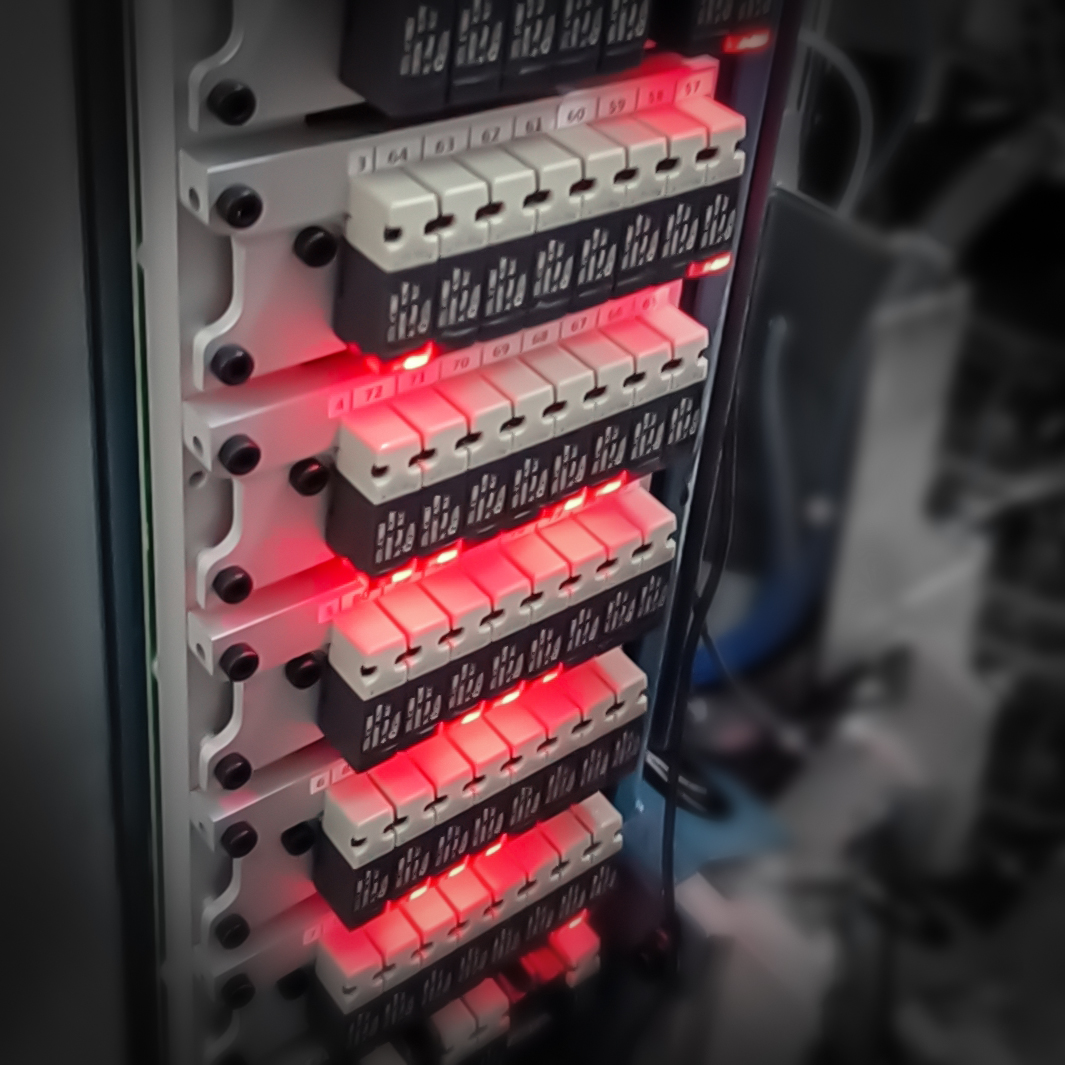

LEEFU sock knitting machine uses high quality 10MM energy-saving valve and other pneumatic components to control the position of the cam.

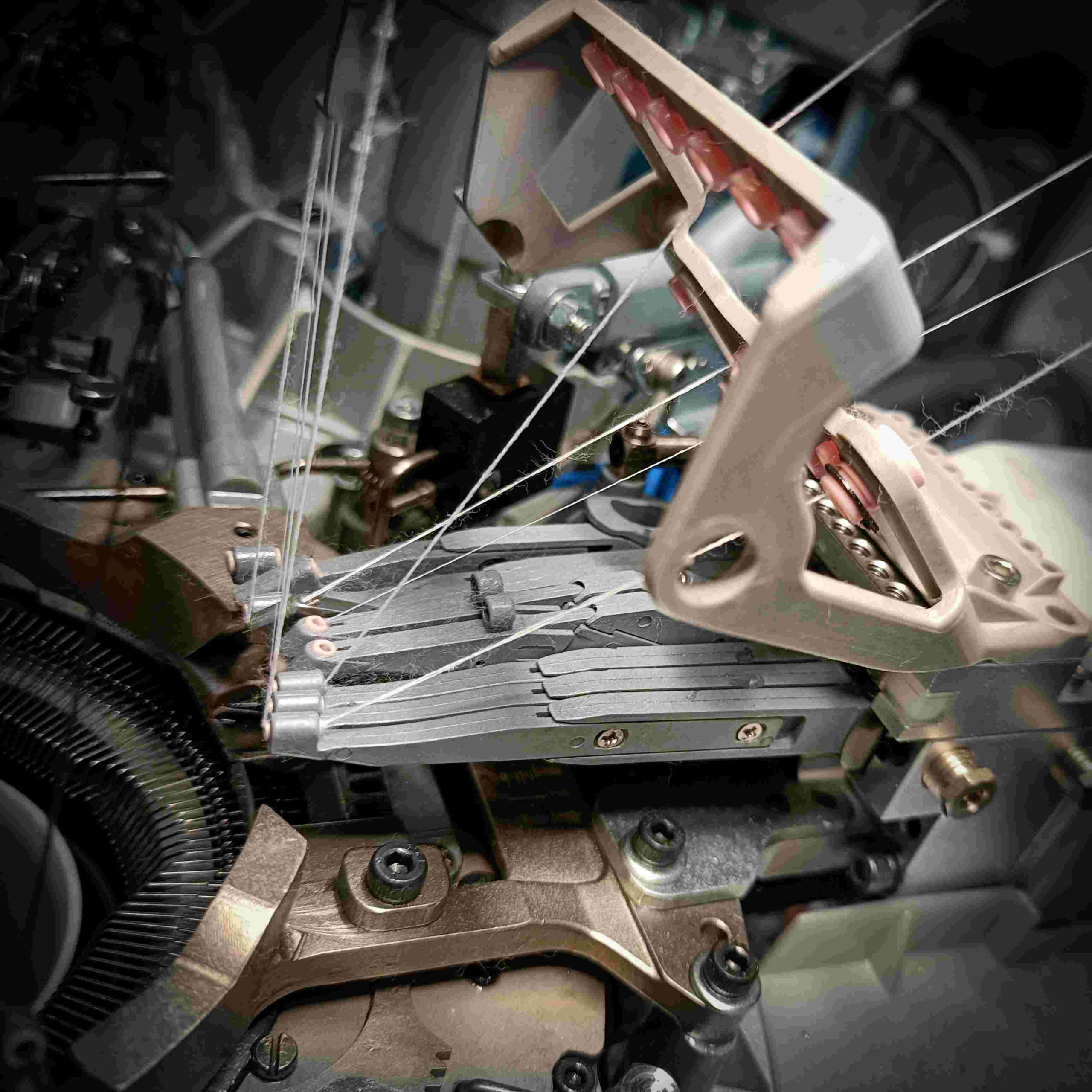

LEEFU sock knitting machine’s main feeder has 9pcs pneumatic yarn fingers with an independent half position.
LEEFU sock knitting machine’s knife detection system checks whether the knife work in the right place and improves the working stability of the sock knitting machine.

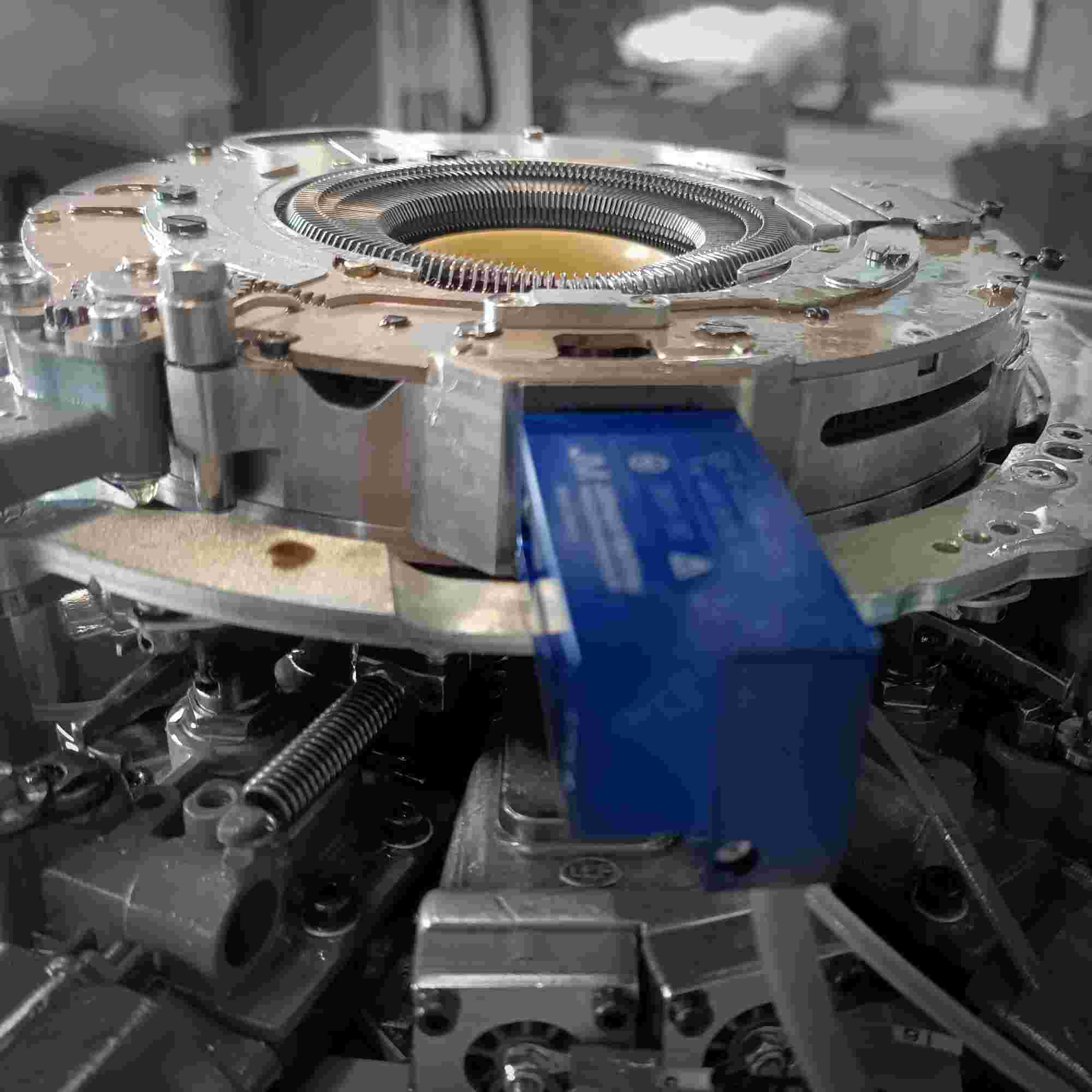

LEEFU sock knitting machine’s terry selector controls the knitting state of each knitting needle, realizing the double use of plain knitting and terry knitting, and fast switching between two knitting functions.

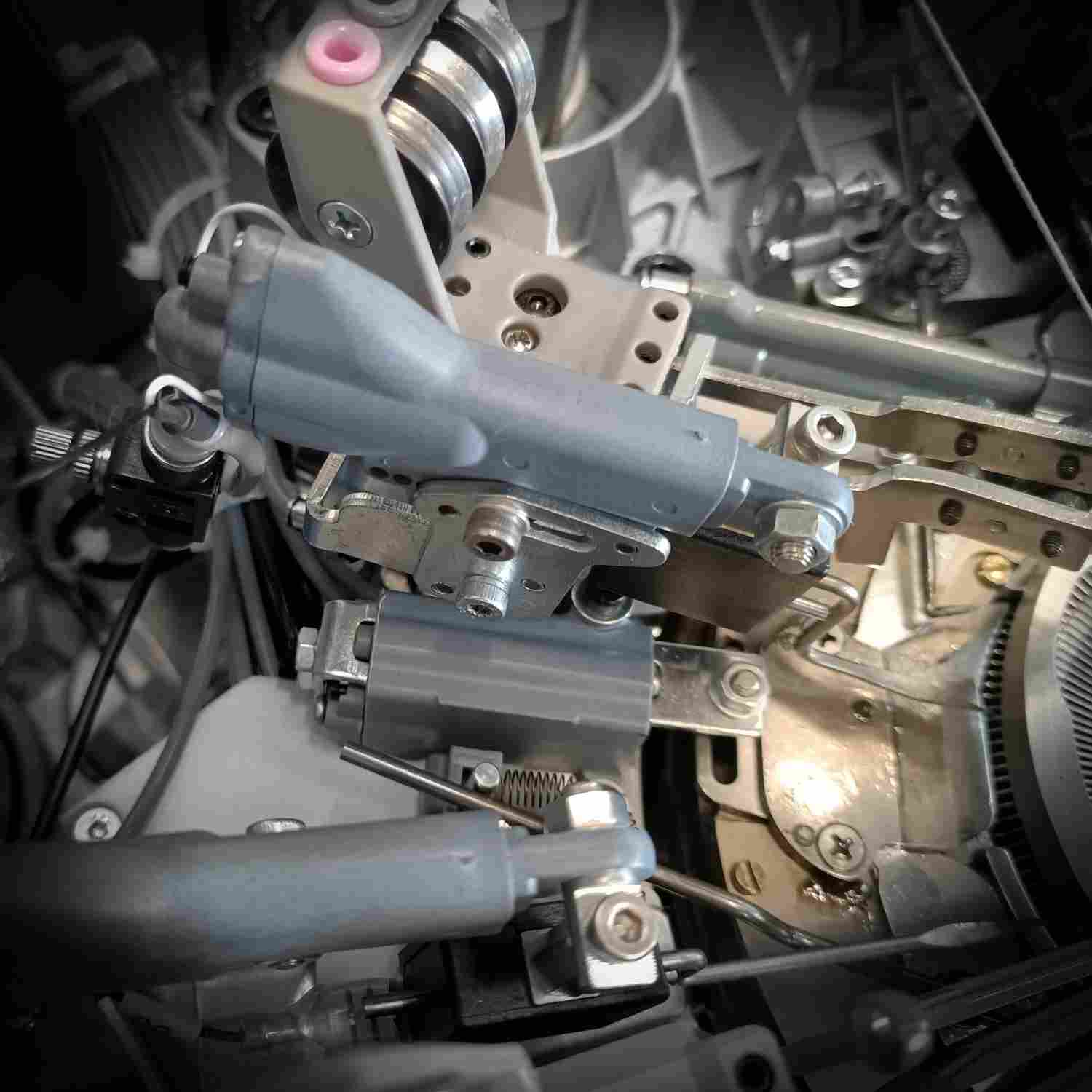

The needle latch sensor detects whether the needle latch is bent or not in sensitive working states, and improves the working stability of the sock knitting machine. A highly sensitive automatic alarm system reduces needle loss and makes abnormal alarms.
LEEFU Sock Knitting Machine Appearance Requirement
LEEFU Automatic linking sock knitting machine has a very strict appearance requirement from plastic parts, sheet metal parts, all kinds of line etc.
-

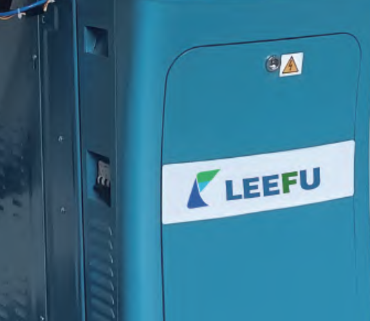

The outer surface of the integrated sock knitting machine should be smooth, smooth, the seam is flush, and the gap is uniform.
-
The FastenerThe fastener needs to be surface treated plated parts, blue, black, and other parts of the color should be consistent protective layer should not fall off phenomenon;
-
Wires & PipelinesThe exposed parts of all kinds of wires and pipelines should be arranged neatly and securely;
LEEFU Automatic Linking Sock Knitting Machine Knitting Parameter
-

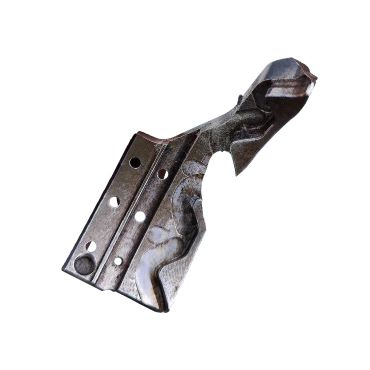

LEEFU sock knitting machine has a high request of triangular needle surface, and triangular needle roughness Ra0.8 (um); triangular needle surface hardness (60~65)HRC;
-
The Radial FaceThe radial runout and end face runout of the syringe are both ≤0.05(mm):
-
The needle groove of the needle cylinder should be kept clean, and there should be no obvious black stains after the relative movement between the sock needle and the needle cylinder, and between the jacquard needle and the needle.
-
The Movable TriangleThe entry and exit of the movable triangle should be flexible, reliable, and free of out-of-control phenomena.
LEEFU Automatic Linking Sock Knitting Mechanical Property
The integrated sock knitting machine should be able to operate normally at the highest design speed, without abnormal vibration and impact sound during operation.
There should be no obvious air leakage or oil leakage in the pneumatic and lubrication systems;
The moving parts are well-lubricated, and the oil pump is refueled correctly and reliably.
The noise sound power level of the whole machine is ≤94{dB(A)}, and the emission sound pressure level is ≤83{dB(A))

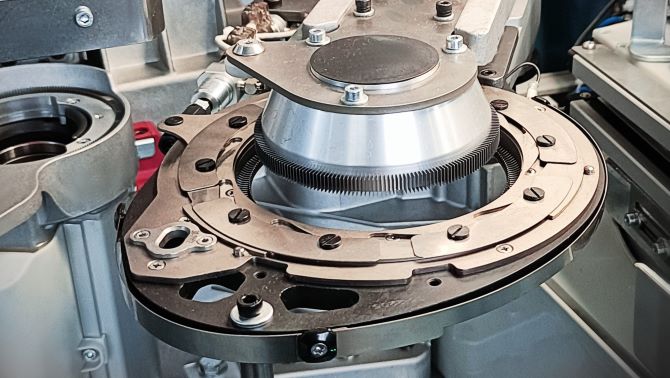

Transferring Device
The transfer hook and the knitting needle or linking needle are accurately matched when moving the socks, and the precise correspondence can still be guaranteed after the linking needle is turned over. And the left and right, up and down movements of the transferring arm should be uniform, stable, and precise.

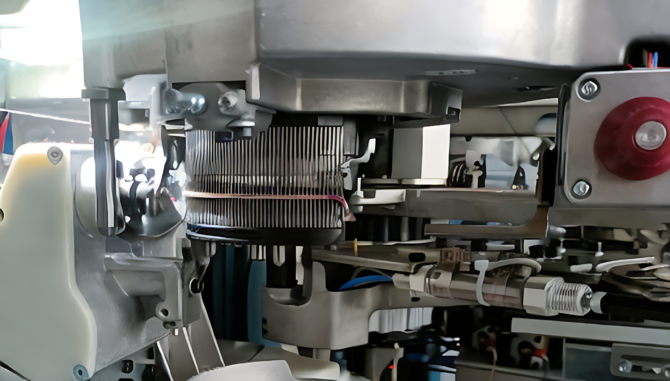

Linking Device
The in and out positions of the linking head machine should be accurate, and the movement of the thick and thin needles and the rotation of the linking teeth should be precisely coordinated.
Electricity Voltage
Voltage: (380±38) V, Frequency ( 5 0 ± 1 ) Hz.

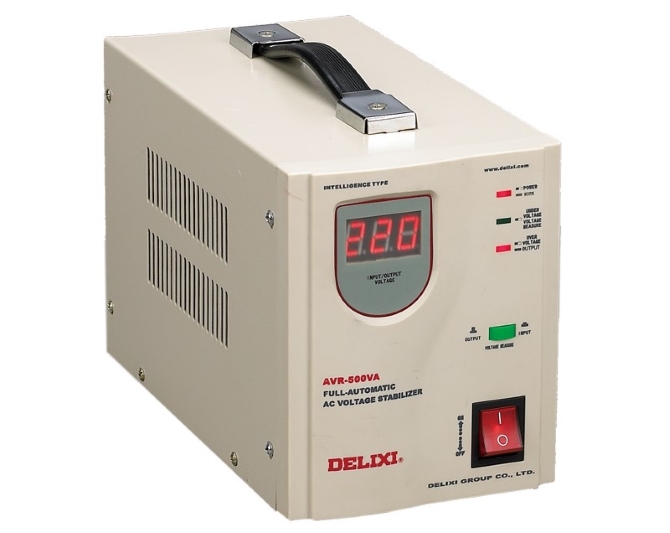

Three-phase power requires a ground wire and voltage regulator.

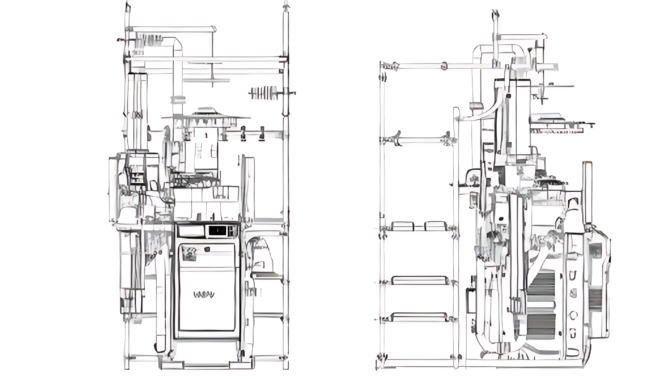

Boundary Dimension
The boundary dimensions of the sock knitting machine are 2260mm in height, 900mm in width, and 1100mm in depth.
The supporting yarn creel has a height of 2600 mm, a width of 1200 mm, and a depth of 1680 mm.

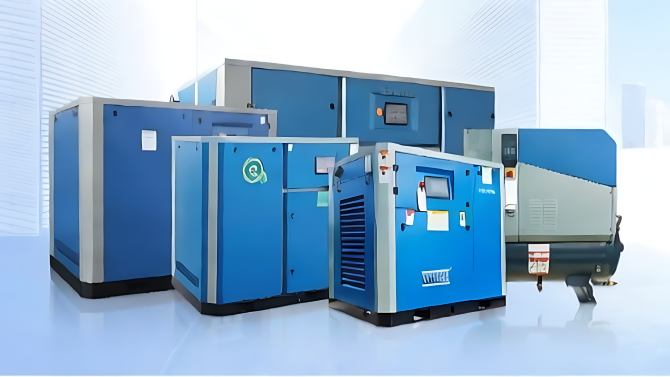

Air Compressor
The positive pressure is stable between 6.2 kg and 6.5 kg, and the compressed air needs to be free of water and oil.
Negative pressure (air suction) is greater than 6.5KPa.
Lubricants & Oil
Engine oil brands: Imported Volkswagen oil 14C, or Kluber oil 183, or Chinese domestic oil 46#.
Mechanical grease: Klüber Lubricants ISOFLEX TOPAS L 32.
Sock Tube
The up and down movement of the sock tube should be smooth and the movements should be connected correctly;
Here are our sock samples knitted by our automatic linking sock knitting machine
Football Socks: Made specifically for cleated shoes, the ankle padding protects your ankles from blisters caused by thin spike collars. Ribbed underfoot adds sock traction and foot stability.
Sock Design: The socks also feature a mesh upper for improved breathability; cushioning at the heel and toe adds arch support and lightens the foot.
Sock Knitting Machine: LEEFU automatic linking sock knitting machine LF616RM

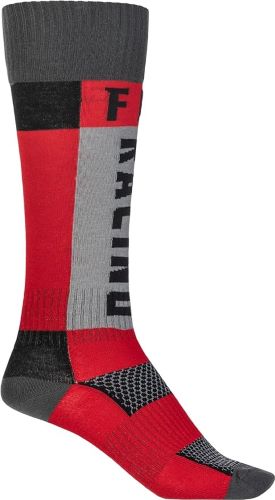

Cycling Socks: Padded toe and heel for added comfort; Socks provide arch and ankle support;
Sock Design: Cycling Socks are ideal for indoor cycling, mountain biking, triathlon, or city riding;
Sock Knitting Machine: LEEFU automatic linking sock knitting machine LF616RM
Casual Socks: True one-piece seamless structure, providing smooth performance and fit to the foot;
Sock Design: absorbs the impact of movement and provides full-motion support and stability;
Sock Knitting Machine: LEEFU automatic linking sock knitting machine LF616RM

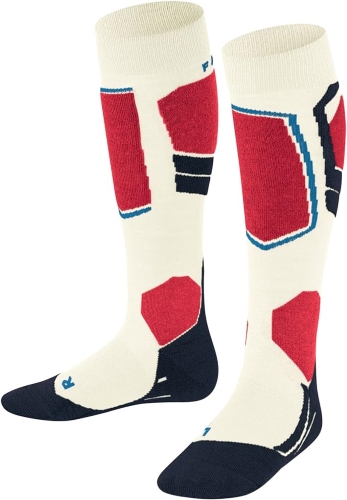

Ski Socks: The moisture-wicking properties of ski socks help keep your feet warm and dry when you enjoy snowboarding, downhill skiing, hunting excursions, or playing winter sports.
Sock Design: Ski socks have thick terry on the toe, heel and shin which can provide full cushioning from pressure. Also Ski socks can fully minimize the big friction between your boots and feet, then you won’t feel any discomfort while doing outdoor skiing in winter.
Sock Knitting Machine: LEEFU automatic linking sock knitting machine LF616RM

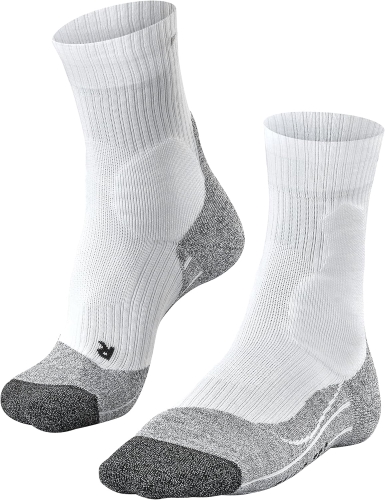

Tennis Socks: Tennis socks are mixed with multi-functional yarns, soft and skin-friendly; the medium-thickness padding and terry can effectively protect the ankle area and reduce the risk of ankle sprains;
Sock Design: Padded soles increase comfort, and the structure of the socks is breathable and quick-drying, keeping your feet dry at all times;
Sock Knitting Machine: LEEFU automatic linking sock knitting machine LF616RM

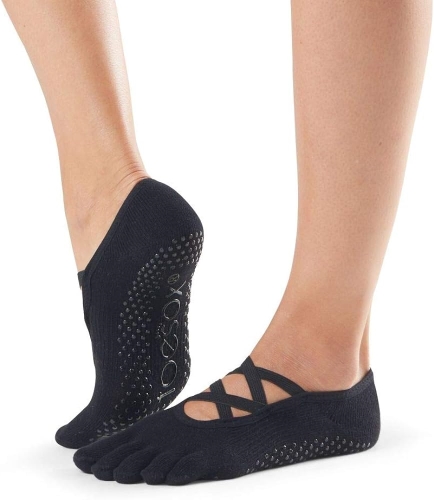

Yoga Socks: Show off your perfect ballet style and fantastic figure. The elastic criss-cross design keeps the sock close to the foot during all movements, and the non-slip sole keeps the sock firmly on the ground.
Sock Design: Suitable for various barefoot sports, including ballet, yoga, taekwondo, karate, and more. Independent five-toe design makes it easier to extend the toes;
Sock Knitting Machine: LEEFU automatic linking sock knitting machine LF616RM

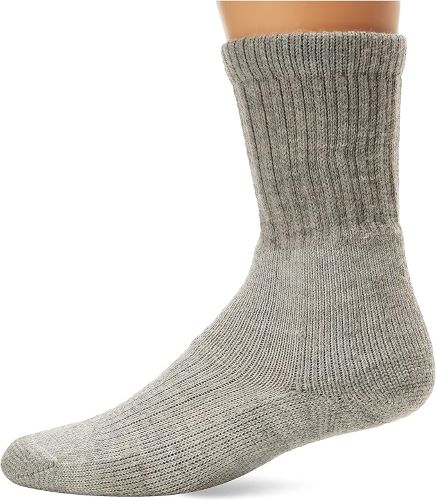

Hiking Socks: Provide comfortable support when climbing, hiking, and walking. The socks are made of high-density fiber and plush soft wool to increase the comfort of the socks;
Sock Design: excellent elasticity, gently supports and protects the arch of the foot and ankle. In any outdoor climbing, it can protect and reduce the shear force on your feet and prevent blisters on your feet;
Sock Knitting Machine: LEEFU automatic linking sock knitting machine LF615PM
Customer Show
| SPEC | P-PLAIN | M-TERRY | PM-PLAIN AND TERRY DOUBLE USE | RM-FREE TERRY |
| CYLINDER DIAMETER | 3 1/2” ； 3 3/4”; 4” | 3 3/4”; 4” | ||
| NEEDLE(PCS) | 108-200 | 108-200 | ||
| MAX SPEED(RPM) | Plain 350 | Terry 300 | Plain 350/Terry 300 | Plain 350/Free Terry 250 |
| TERRY MODEL | Nothing | Pneumatic needle selection | Electronic terry needle selection | |
| MAIN YARN FEEDING | 9pcs Pneumatic shuttles with independent half position | |||
| COLOR YARN | 5groups*3 / 6groups*3 | |||
| NEEDLE SELECTOR | 6groups color yarn use 9pcs electronic needle selector;
5groups color yarn use 8pcs electronic needle selector; |
|||
| SEVER MOTOR | 1.5 | |||
| FAN MOTOR | 1.5-2.0 | |||
| CONTROLLER | 1 | |||
| VOLTAGE(V) | 220/380 | |||
| NW/GW(KG) | 350/400 | |||
| DIMENSION(CM) | BOUNDARY 110*110*230 Package 120*110*190 | |||
| THE FIRST WORD | THE SECOND WORD | THE THIRD WORD | THE FOURTH WORD |
| 7 means 3 1/2” Cylinder Diameter | 1 means one main feed knitting
|
6 means 6groups color yarns | P=Plain |
| 6 means 3 3/4” Cylinder Diameter | 5 means 5groups color yarns | M=Terry | |
| 5 means 4” Cylinder Diameter | —— | PM= Plain and Terry double use | |
| —— | —— | RM= Free Terry (Selected Terry) |
| Model | ø | 6½ | 7 | 7½ | 8 | 8½ | 9 | 9½ | 10 | 10½ | 11 | 11½ | 12 | 12½ | 13 | 13½ | 14 | 14½ | 15 | 15½ | 16 | 16½ | 17 |
| 615/616 | 4” | 108 112 | 116 120 | 128 132 | 136 | 144 | 156 160 | 168 | 176 | 180 | 188 | 192 | 200 | ||||||||||
| Needle thickness 0.85 mm | |||||||||||||||||||||||
| Needle thickness 0.70 mm | Needle thickness 0.70 mm | ||||||||||||||||||||||
| Needle thickness 0.60 mm | |||||||||||||||||||||||
| 615/616 | 3”3/4 | 108 | 112 | 116 | 120 128 | 132 | 136 | 144 | 156 | 160 | 168 | 176 | 180 | 188 | 192 | 200 | |||||||
| Needle thickness 0.85 mm | |||||||||||||||||||||||
| Needle thickness 0.70 mm | Needle thickness 0.70 mm | ||||||||||||||||||||||
| Needle thickness 0.60 mm | |||||||||||||||||||||||
